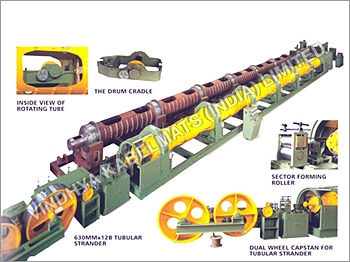

Tubular Type Stranding Machine

Tubular Type Stranding Machine
Tubular Type Stranding Machine
Product Code : 23
Product Description

Tubular Type Stranding Machine

We take immense pride to introduce ourselves as one of the trusted manufacturers, suppliers and exporters of Tubular Type Stranding Machine. The stranding machine has gained immense appreciation in the market due to its high operational fluency, optimum performance and durability. Offered stranding machine is examined by our trusted quality inspectors on required parameters. Offered variety of stranding machine is lashed with noise absorbing safety cover. This Tubular Type Stranding Machine is highly demanded in engineering & cable industry

Features:
  • Tubular type high speed stranding with back twist, for 7/12/19B copper/aluminium round & compact conductors and steel wires stranding
  • The wire pass tunnel is located on the surface of bobbin cartridge tube, which makes for easy stringing of the strand core
  • Cartridge bobbin tension can be controlled via pneumatic brake, or slip band
  • The tubular is supported by integral bearing or cast-iron under roller according to customers needs.

UNDER ROLLER TYPE -- TUBULAR TYPE STRANDING MACHINE

Machine type

VKPL-630

VKPL-560

VKPL-450

VKPL-400

Rotor Rotating speed (RPM)

6B

500

500

500

600

12B

350

350

350

450

Haul-off Capstan (mm)

800/1500

800/1500

600/1200

600/1200

Pay-off bobbin (mm)

1200

1200

800

800

Spooler bobbin (mm)

1500

1500

1200

1200

Main motor (AC/HP)

50/75

50/75

30/50

30/50

BEARING TYPE --TUBULAR TYPE STRANDING MACHINE

Machine type

VKPL-630

VKPL-560

VKPL-450

VKPL-400

Rotor Rotating speed (RPM)

6B

600

600

700

700

12B

450

450

550

55

Haul-off Capstan (mm)

800/1500

800/1500

600/1200

600/1200

Pay-off bobbin (mm)

1200

1200

800

800

Spooler bobbin (mm)

1500

1500

1200

1200

Main motor (AC/HP)

50/75

50/75

30/50

30/50
