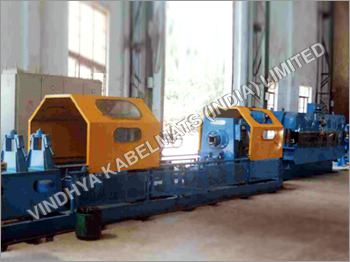

Steel Tape Armouring Machine

Steel Tape Armouring Machine
Steel Tape Armouring Machine
Product Code : 22
Product Description

Steel Tape Armouring Machine

Relying on our wide experience & skilled workforce, we are considered to be the reputed manufacturers and exporters of Steel Tape Armouring Machine. The salient features of our armouring machine are its high efficiency, low maintenance cost and longer service life. Offered armouring machine is extensively used for making protection body of cables and wires. Further, the Steel Tape Armouring Machine is checked by our quality analyzers on various parameters before delivering it to the respected client.

Consist of the following major components.

  • One no. Pay off Stand-2000MM.
  • Two nos. Cable Guide Rollers units.
  • One no. Length Measuring unit.
  • One no. Tangential Tape Lapping Head (for Cotton, Plastic etc.)
  • One no. Tangential Tapping Head (for Galvanized Steel Tape).
  • One no. Belt type Caterpillar.
  • One no. Take up Stand-2500MM with Traversing unit.
  • Main drive -30 KW.
  • One set Main Drive & Electrical System.

Tangential tapping Head. & Caterpillar.

Machine Type

No. of pads.

Out.Dia.

Bore

Width. mm

Max.wt. kg

Tape thick. mm

For plastic.

2

500 mm

75 mm

20-100.

30

0.05-0.5

For Steel /Metal

2

800 mm.

150

15-- 55

180

0.5 - 0.8

Lay adjustments for both - through PIV. Through for CTH - 125 mm / Through hole for STH - 120 mm.

Caterpillar

Gripping length

Pulling force

Width. Of Contact belts.

Speed

Cable opening

Air Pressure.

Height of cable axis - 1000 mm
