Rod Break Down Machines

Rod Break Down Machines
Rod Break Down Machines
Product Code : 21
Product Description

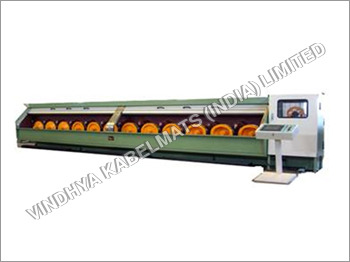

Rod Break Down Machines

Blessed & supported by the team of high skilled personnel, our company is considered as one of the leading manufacturers and exporters of Rod Break Down Machines. Owing to its optimum performance, smooth operational activity and durability, the offered range of machine is highly appreciated in the market. This machine is manufactured making use of premium quality of raw materials. These Rod Break Down Machines are immensely used to break down aluminum and copper rod.

Features:

  • Rapid change and replaceable dies.
  • Ring type drawing capstans for convenient maintenance and replacement.
  • Drive control of drawing speed synchronization and computer die schedule auto-arrangement.
  • Online continuous annealer, single spooler or double spooler with auto-bobbin change, or continuous basket down coiler are available.

Components

  • Main Body of drawing machine..................1set
  • Drawing lubrication circulation system.......1set
  • Gear lubricant circulation system................1set
  • Wire broken detector...................................1set
  • Driving motor c/w control panel..................1set
  • Control/operation panel...............................1set

COPPER/ALUMINIUM ROD BREAKDOWN MACHINES

Model

No. of Die dies/capstan

Inlet wire dia. (mm)

Finished wire dia. (mm)

Line Speed-MPM (mpm)

Spooler dia. (mm)

Main Motor DC/AC HP

VKPL-15

15

9.5-8.0

4.7-1.2

1500 MPM.

560-630

400

VKPL-14

14

9.5-8.0

4.7-1.2

1500 MPM MPMMPM..

560-630

300

VKPL-13

13

9.5-8.0

3.2-1.3

1500 MPM

560-630

300

VKPL-11

11

9.5-8.0

3.2-1.8

1000 MPM

560-630

250

VKPL -9

9

9.5-8.0

3.2-2.2

800 MPM

560-630

250

Specifications for slip-type Wire Drawing Machines

Model

VKPL-3

VKPL-4

VKPL-7

VKPL-9

VKPL-11

VKPL-13

No. of Drafts

3

4

7

9

11

13

Drawing Capstan Dia

400

400

450

450

450

450

Inlet wire Rod

9.5 mm

9.5 mm

9.5 mm

9.5 mm

9.5 mm

9.5 mm

Aluminum Alloy

4 mm

6 mm

6 mm

8 mm

8 mm

9.5 mm

Copper

4 mm

6 mm

6 mm

8 mm

8 mm

9.5 mm

Finished Wire

3.5 to 4.72

3.5 to 4.72

3.5 to 4.72

2.00 to 5.00

2.00 to 5.00

1.5 to
5.00

Range

in multiple operation

in multiple operation

in multiple operation

Single operation

Single operation

Single operation

Drawing Final Speed

600 mts./min.

600 mts./min.

800 /1000 mts./min.

1000 /1200 mts./min.

800 /1000/1200 mts./min. 1000 mts./min.

800/1000/1500
mts./min. 1000 mts./min.

HP Required

40 HP

60 HP

75 HP

100 HP

125 HP

150 HP

HP required for Aluminum Alloy & copper will Furnished on demand

Reduction Area

20 to 26%

20 to 26%

20 to 26%

20 to 26%

20 to 26%

20 to 26%

Type of Machine

Slip Type

Slip Type

Slip Type

Slip Type

Slip Type

Slip Type

Capacity per 8hrs. Shift

500 kgs.

0.5 to 1 tons

1500 kgs.

2 to 5 tons

2 to 5 tons

2 to 5 tons

Spool size

450/500

450/500

630 mm

630 mm

630 mm

630 mm

Space Required

15 x 10

15 x 10

30 x 10

40 x 10

44 x 10

55 x 10
