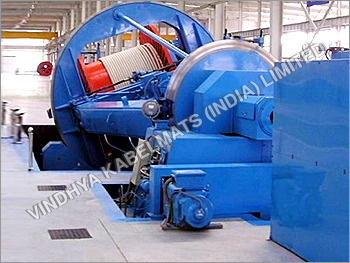

Drum Twister Laying Up Machine

Drum Twister Laying Up Machine
Drum Twister Laying Up Machine
Product Code : 06
Product Description

Drum Twister Laying Up Machine

We are considered to be one of the most profound & prominent exporters, manufacturers and suppliers of Drum Twister Laying Up Machine. Our diligent professionals have used state-of-the-art machines and top notch quality materials for manufacturing a wide range of machines. This machine is highly acknowledged in the market for its striking features such as impeccable performance, easy installation and longer service life. The Drum Twister Laying Up Machine finds usage in laying up power cables and telephone cables.

For power cable, communication cable laying up, and fiber filler, taping and steel wire armouring.

  • Drum twisters can lay up prespiral-sector cable cores and gain stepless variable pitch by PIV/PLC
  • Entire line can be run by transmission shaft or by independent individual synchronous motors
  • Loading and unloading of drums are done by hydraulic platforms
  • Software is designed to be self monitoring for maintenance concerns

Machines are available for

  • PE fiber filler
  • Concentric/tangential type taping (polyethylene tape)
  • Tangential type Taping (Steel tape)
  • Steel wire armouring
  • Strand pitch can be adjusted by PIV/PLC

Machine Type

VKPL
1600

VKPL
1800

VINKB
2000

VKPL
2400

VKPL
2600

VKPL
2800

VKPL
3000

VKPL
3400

Spooler Reel (mm)

1600

1800

2000

2400

2600

2800

3000

3400

Pay Off Reel (mm)

1600
/800

1800
/1000

2000
/1600

2400
/2000

2600
/2200

2800
/2400

3000
/2000

3400
/2600

Finish Dia-power cable (mm)

30

40

50

70

80

90

110

150

Rotor RPM

120

120

80

80

60

60

50

40

Max. Reel weight (kg)

5000

7000

9000

10000

12000

16000

16000

16000

Max. Linear speed (mpm)

80

80

65

100

100

100

100

100

Main Motor (AC/HP)

75

125

150

200

250

250

300

300
