Double Twist Bunching Machine

Double Twist Bunching Machine
Double Twist Bunching Machine
Product Code : 10
Product Description

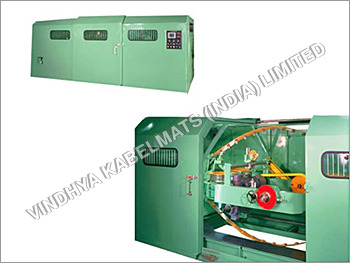

Double Twist Bunching Machine

We, Vindhya Kabelmats (I) Limited take immense pleasure to introduce ourselves as one of the well established manufacturers and suppliers of Double Twist Bunching Machine. Owing to its robust construction, impeccable performance and longer service life, the bunching machine offered by us is in great demand among our valued clients. Before delivering the product to the patrons, our quality controllers test the bunching machine on certain parameters. Offered Double Twist Bunching Machine is widely used in cable, electronic and engineering industry for bunching steel and copper wires.

Features

  • Double twist type twisting with back twist
  • Suitable for telephone cable, power cable, electrical cable, computer cable, automotive cable, LAN cable (CAT 5/CAT6)
  • Main rotor and capstan wheel and take up unit are driven by individual motors.
  • Drive control of speed synchronization and laying pitch pre-setting
  • Operating Direction - Optional for Right or Left wire inlets
  • Take-up tension control - Manual tension adjustment/Optional auto tension control by powder clutch)
  • Reel elevator - Shaftless type, manual lifting/Optional for electrical reel elevator
  • Traversing unit - Rolling ring drive units. Winding pitch and breadth are adjustable
  • Safety locks at front door and cover
  • Noise levels - 85 dB
  • Colors - Standard apple green or by request

Automatic Stop System - Machine auto stops when

  • Inner/outer wire breaks
  • Reach setting length
  • Door open

Start/Stop

  • Soft start and stop controlled by inverter
  • Emergency stop by electromagnetic brake

Power supply, bobbin pintle, operating direction and color made on request

Model

Rotating Speed(RPM)

Drive Motor
(HP)

Take-Up
Bobbin (mm)
Max.

Wire Size
(mm)

Strand Section Area
(mm2)

Standard Pitch

Strand Direction

VKPL-300P

3000

5-7.5

300

0.05~0.28

0.0137~0.45

4.36~17.00

L/R

VKPL-400P

3000

7.5-10

400

0.08~0.32

0.035~1.25

4.08~31.05

L/R

VKPL-500P

3000

10-20

500

0.08~0.45

0.035~1.25

4.22~39.64

L/R

VKPL-650P

1600

15-25

630

0.16~1.0

0.4~5.5

11.15~60.24

L/R

VKPL-630P

2000

15-20

630

0.16~1.0

0.14~5.5

8.55~49.91

L/R

VKPL-800P

1200

20-35

800

0.358~1.4

0.8~11

10~100

L/R
