Core Laying Up Machine

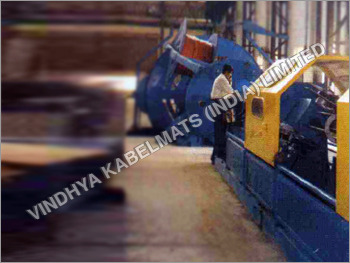

Core Laying Up Machine
Core Laying Up Machine
Product Code : 09
Product Description

Core Laying Up Machine

Our company is renowned in the worldwide market for manufacturing, supplying and exporting a wide range of Core Laying Up Machine. The remarkable features of machine are high performance, longer service life and low maintenance cost. We have manufactured the machine under the guidance of adroit professionals. This machine is widely used to lay up multi core cables of varied construction. Further, the Core Laying Up Machine is available in different sizes and specifications.

Further Details:

We are offering a wide range of 1+ 3 by 4 Core Laying Up Machine.

SPECIFICATION FOR DRUM DIA 1200 mm

Type

Cradle Rotating Type

Drum Size

Flange Dia : 1200mm
Traverse : 500mm

Drive

40HP A C Motor

Sector Shape Device

Separate sector shape device will provided after die holder unit

Tension Adjustment

Band Type-Adjustable

1+ 3 by 4 Core Laying Up Machine

Rotor

No. of Bobbins

3/4-arranged in One Cage

Bobbin Size

Flange dia : 900 0mm

Cradles

Each Cradle is at 120 /90 Degree

Back Twist Arrangement

The machine can run in rigid or Planetary Type

Main Drive

40-75HP AC Motor with Inverter Drive

Cage Speed

10 RPM/25 RPM

Direction of Rotation

Clockwise and Anticlockwise

Cage Support

One end on bearing & other end on under Rollers

Brake

Pneumatic Brake

Guide Rollers

Hardened rollers at suitable exit position of the rollers

Lay Plate

Suitable for three and four cores will be Provided

Die of Cores to be laid

30-45. (Max)

Die of laid up cores

100-mm (Max)
